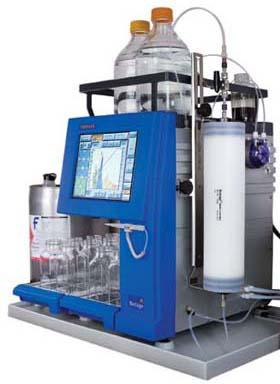

Isolera™ LS
Flash Purification System
Scale from milligrams to >150 g on a single system using a single method
|
| Specifications |
| Solvent delivery |
Two electric HPFC pumps |
| Flow rate |
50 – 500 mL/min |
| UV Detection |
Variable dual-wavelength (200 – 400 nm) |
| UV collection modes |
One wavelength, Two wavelengths |
| Power |
100 – 240 VAC, 50/60 Hz, 4.0 A |
|

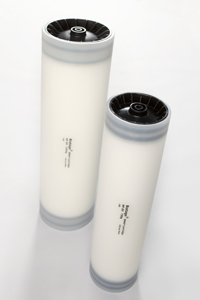

New Biotage® SNAP
750 g and 1500 g cartridges
| Cartridge |
Diameter (mm) |
Bed Length (mm) |
Silica Weight
(g) |
Typical Flow Rates (mL/min) |
Column Volume (mL) |
| SNAP 750 g |
82 |
291 |
750 |
100-300 |
990 |
| SNAP 1500 g |
107 |
328 |
1500 |
300-500 |
1980 |
|

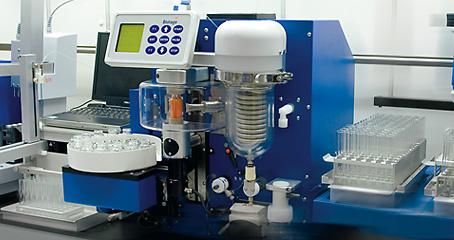

V-10 1.6 Evaporator
evaporation system
| System Specifications |
| Sample delivery |
5-mL syringe pump and/or peristaltic pump |
| Vial size compatibility |
4 mL (3 variants)
20 mL scintillation vial
30 mL scintillation vial |
| Liquid Handling compatibility |
Gilson 221 (use with peristaltic pump)
Gilson 222, 215 or GX271 (use with dual pumps) |
| Power |
110 VAC (± 10%), 50/60 Hz, 15A (Japan)
230 VAC (± 10%), 50 Hz, 8A (EU/UK) |
| Dimensions (W x H x L) |
40 cm x 53 cm x 48 cm (16” x 21” x 18.5”)
49 cm x 53 cm x 54 cm (19.5” x 21” x 21.5”) |
| Weight |
45 kg (100 lb)
50 kg (111 lb) |
|
Biotage Advancer Kilobatch™
Sequential Batch Microwave Synthesizer
| System Specifications |
| Dimensions (W x D x H) |
140x65x185 cm (55x26x73 inch) |
| Weight |
~600Kg (1200 lbs) |
| Power supply |
Europe: 220 - 240 V~, 50 Hz (5 A)
US: 200 - 215 V~, 60 Hz (10 A) |
| Operating condition |
18-32 °C & 20-95%RH (64-90 F) |
| Reaction temperature |
60-250 °C |
| Reaction heating |
0.5-4 °C/sec |
| Reaction preasure |
1-22 bar |
| Power reange |
0-1200 W |
| Overhead stirrer |
0-1100 rpm |
|
